Web Journey Checks

Web Journey checks provide pre-defined journeys through webpages and websites, with rules and monitors for each step, to allow in-depth monitoring of any websites or web applications accessible by the EndPoint Monitor installation. This uses programmatic control of a web browser to run the check, with each step run the same way a user would interact, providing a realistic comparison to real users using the given web application.

The individual steps Web Journey checks are built up with are known as Web Journey Steps. These can be built up within
each Web Journey check to create bespoke actions and monitors, or using Common Web Journey Checks to create a set Web Journey Steps that can be used by another other Web Journey check, useful for common actions such as logging in or suppressing known errors.

The Web Journey Step contains three core components detailed below, and are run in the order given:

Page Checks
These allow for the checking of the current page, at what ever state it is within the journey. Checks include validating what is displayed on the page, if certain network calls have been made and checking for entries in the console log.
Alert Suppression
These allow for the suppression of failed network calls or warnings and errors in the console log that would otherwise result in the check producing a warning or failed status.
Step Actions
These define the automated actions to take to interact with the monitored web application, such as clicking on elements, entering text and much more.

Adding Web Journey Checks

This guide will go through adding a Web Journey Check through the web console. As with all checks, Web Journey Checks, including all their subcomponents such as Web Journey Steps can be added both by the REST API and using the EndPoint Monitor Terraform provider too however.

Login to Web Console and select Checks from the main menu.
Click Add located towards the top left of the web console.

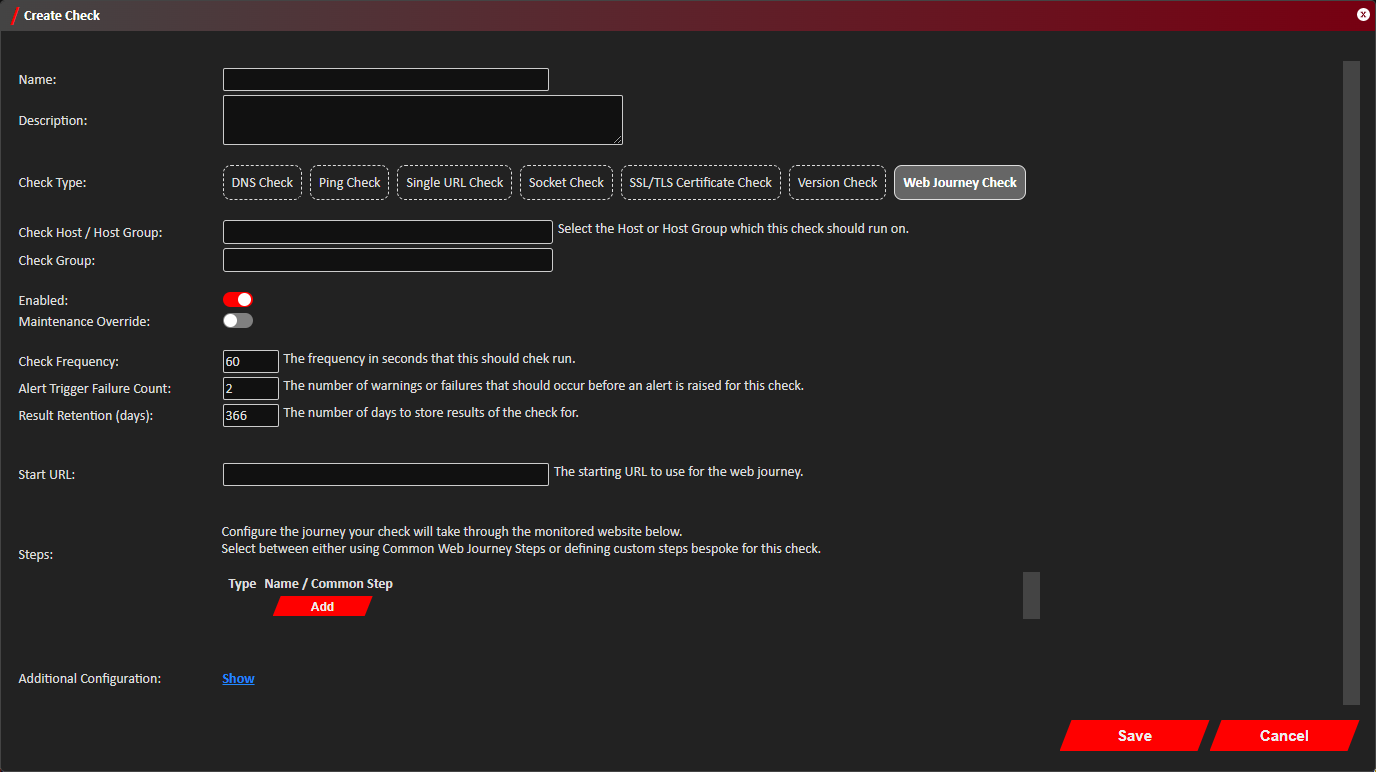

The Create Check window should now show. Definitions for each field can be found below under Configuration Definitions.

Ensure the Check Type is set to Web Journey Check.
Click Add to add a first step to the new Web Journey. You can select between a pre-defined Common Web Journey Step or creating a custom step for this Web Journey Check only. For custom steps, click Configure to define the specific checks and actions to take.

Click OK to return to the main configuration and add more steps if needed. All steps will be run in the order shown on screen.
Click Show on Additional Configuration for further configuration options including any Proxy Host to use, the scope of console errors and network calls monitored, and the size of the browser window to use. See Web Journey Step Configuration for details on what can be configured here.
Click Save to save this new check have it scheduled to start running. The Edit Web Journey Steps window should now be shown. Click Add to continue adding more steps to the newly created journey, or click Save to finish.

Amending Web Journey Checks

This guide will go through editing a Web Journey Check through the web console. As with all checks, Web Journey Checks, including all their subcomponents such as Web Journey Steps can be added both by the REST API and using the EndPoint Monitor Terraform provider too however.

Login to Web Console and select Checks from the main menu.
Click Actions next to the Check you want to edit, and then click Edit.

The list of checks shown can be filtered using the search bar to by the checks name, description, hostname or linked Check Group or App Group names.
The Edit Check window should now show. Definitions for each field can be found below under Configuration Definitions.

Ensure the Check Type is set to Web Journey Check.
The list of steps to take, which contain the checks to perform on the shown page the actions to take, will be listed under Steps. They will be run in the order shown on screen. The order can be changed using the arrows on the left-hand side of the list. The right-hand side icons will (in this order) insert a step, copy a copy or remove a step.

You can select between a pre-defined Common Web Journey Step or creating a custom step for this Web Journey Check only. For custom steps, click Configure to define the specific checks and actions to take.

To convert a Custom Step to a Common Step so it can be used by other Web Journey Checks, click the Convert To Common Step link when viewing the configuration for the Custom Step to be converted.

Click OK to return to the main configuration and add more steps if needed. All steps will be run in the order shown on screen.
Click Show on Additional Configuration for further configuration options including any Proxy Host to use, the scope of console errors and network calls monitored, and the size of the browser window to use. Click OK to close this additional configuration.
Click OK and Save on any remaining open windows to save any new configuration.

Confirmation of the check being saved will be shown in the bottom-right notification area. Any checks in flight will continue to run the previous configuration.

Removing Web Journey Checks

Login to Web Console and select Checks from the main menu.
Click Actions next to the Check you want to edit, and then click Remove.

The list of checks shown can be filtered using the search bar to by the checks name, description, hostname or linked Check Group or App Group names.
Click Remove on the Remove Check conformation prompt.
Confirmation the check was successfully deleted should show in the bottom right notification area of the web console. Checks in flight may still try and complete so could still produce an alert shortly after deletion. All result history of the check will also be removed.

Check Configuration Definitions

Name	Description
Name	Provide a name to define what this check is monitoring.
Description	Space to provide a longer description of what the check is monitoring.
Check Type	The type of check this is. This should be set to Web Journey Check.
Check Host / Host Group	The Check Host or Host Group to run this check on.
Hostname	The hostname to lookup as part of this check.
Check Group	The Check Group to assign this check to, which will determine which dashboard it will be shown in.
Enabled	A toggle to enable or disable this check from running.
Maintenance Override	A toggle to manually put the check into maintenance mode. This allows the check to continue running and storing results, but failures will not produce any alerts or notifications, and do not get counted in some reports.
Check Frequency	The minimum frequency in seconds that this check should be run.
Alert Trigger Failure Count	The number of successive failed checks that should occur before an alert or notification is fired.
Result Retention (days)	The number of days that the history of results for this check should be retained for.
Web Journey Steps	The list of steps to take for this Web Journey Check. Definitions of these can be found under Web Journey Step Configuration Definitions.
Start URL	The URL to launch the web browser performing the check at.
Additional Configuration	Click Show to show additional configuration. Definitions of these options can be found under Additional Configuration below.

Additional Configuration

Name	Description
Proxy Host	(Optional) Select a Proxy Host that the browser performing the check should use for all network requests.
Maximum Console Failure Level	Use this to control the failure level console warnings and errors can set on the check. Failed - Any non-suppressed console errors will mark the check as failed. Warning - Any non-suppressed console errors will set the check result as a warning only. Any non-suppressed console errors or warnings will not have any impact on the overall check result.
Domains To Monitor	(Optional) Use this to provide a list of domains that network calls are monitored when performing the check. If the list is left empty then all network calls are monitored and can trigger warnings and failures. Toggle on the Include Sub-Domains option to allow all sub-domains of the domain given also to be included. This works to all levels beyond the apex domain given, so mycompany.com with Include Sub-Domains enabled will also cover api.internal.net.mycompany.com for example.
Window Width	Provide the width of the browser window to be used for the check.
Window Height	Provide the height of the browser window to be used for the check.

Web Journey Step Configuration Definitions

Web Journey Step List

Name	Description
Type	Custom - configure a customised step just for this Web Journey. Common - Use a common shared step as set up in Common Web Journey Steps.
Name / Common Step	If Custom is selected as the Type, then this is a space to provide a descriptive name of what this custom step is doing. If Common is selected as the type, then this space is used to select the Common Web Journey Step to use.
Configure Step	If Custom is selected as the Type, then clicking this will load the configuration of this custom step in a new sub-window. If Common is selected as the type, then clicking this will launch a new browser tab to edit the Common Web Journey Step.

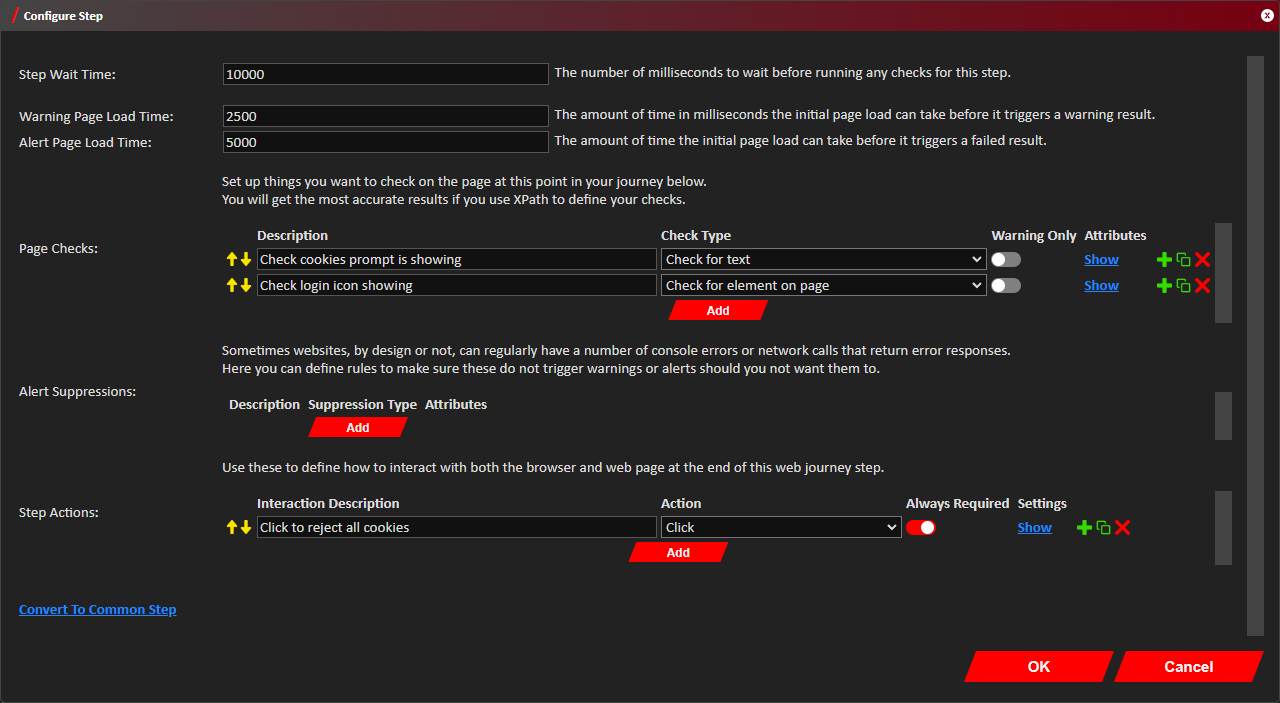

Web Journey Step Configuration

Name	Description
Step Name	A name to provide context to what the step is doing. This will be given in alerts if the check fails on this step.
Step Wait Time	The number of milliseconds to wait before starting the step. This can be used to allow for network calls to complete and the page to finish rendering before any actions or checks are executed against it.
Warning Page Load Time	The maximum number of milliseconds before the browser reports the readyState as 'complete' for a page load before the step is given a warning status.
Alert Page Load Time	The maximum number of milliseconds before the the browser reports the readyState as 'complete' for a page load before the step is considered to have failed. This should be equal to or lower than the Step Wait Time.
Page Checks	A list of things to check on the currently focused page. These can range from checking the current URL to checking the attributes or content of elements. See Page Check Configuration Definitions below for details.
Alert Suppressions	A list of network calls and console warnings and errors to ignore if they occur to prevent known issues resulting in failed checks. See Alert Suppression Configuration Definitions below for details.
Step Actions	A list of actions to perform before progressing to the next step. See Step Action Configuration Definitions below for more details.

Page Check Configuration Definitions

Name	Description
Description	Space to provide context of what the page check is doing. This is used on alerts and notifications should this check fail.
Check Type	The type of check that is to be taken. See Page Check Types below.
Warning Only	Toggle this on to indicate that if the check fails, that it will only produce a warning and not fail the whole Web Journey check.
Attributes	Click Show to edit the specific details of the check. These details will change for the given Check Type. Definitions for these can be found under Page Check Type Attributes.

Page Check Types

Name	Description
Check for text	Check to see if text is present or not present on the current page. This can also be targeted as specific element tags too.
Check for element on page	Check to see if a given element is or isn't on the current page. Elements can be identified using xpath, or the element id or name attribute. The content of the element can also be checked, as well as checking for a specific attribute name or value.
Check current URL	Check the current URL matches the rule given. The rule can check part of the URL for text being present or absent, or for absolute matches.
Check for URL response	Check for a specific network call has been made, and for the response code returned.
Check for console log	Check for console log entries made. These can be filtered by normal logs, or warnings or errors.

Page Check Type Attributes

Check Type	Name	Description
Check for text	Text To Find	The text to search for being present or absent on the current page.
Check for text	Element Type	(Optional) You can narrow the search for the Text To Find to specific element tags by providing the name of the element tag to filter by here.
Check for text	State	Define if the Text To Find should be present or absent from the page.

Check for element on page	XPath To Find	Provide xpath to locate the element on the current page. If the xpath returns multiple elements, the first will be used for evaluation.
Check for element on page	Element ID	Give the id of the element to find on the current page. If multiple elements match the id, then the first will be used for evaluation.
Check for element on page	Element Name	Give the name of the element to find on the current page. If multiple elements match the name given, then the first will be used for evaluation.
Check for element on page	State	Present - The element searched for should be found on the current page. Absent - The element searched for should not be found on the current page.
Check for element on page	Object Attribute Name	Check that the found element has the given attribute name. Not applicable if the State is set to Absent.
Check for element on page	Object Attribute Value	Check that the attribute given in Object Attribute Name has this value.
Check for element on page	Object Content	Check that the found element contains some given text.

Check current URL	Current URL Address	The full or partial URL to check against the current page URL.
Check current URL	URL Comparison	The way to compare the Current URL Address given against the current page URL.

Check for URL response	URL	The URL to search for in the network calls made since the last Web Journey Step.
Check for URL response	URL Condition	The way to compare the URL given against the list of network calls made by the web site since the last Web Journey Step.
Check for URL response	Warning Response Time	(Optional) If the found network call took longer than number of milliseconds given here then a warning will be given.
Check for URL response	Alert Response Time	(Optional) If the found network call took longer than the number of milliseconds given here then this will be considered a failed check and alert accordingly.
Check for URL response	Expected Response Code	If the found network call did not return this response code then the check will be considered a failed check and alert accordingly.
Check for URL response	Accept Any Information Response Code	Consider the found network call to have succeeded if it returned any response code between 100-199.
Check for URL response	Accept Any Success Response Code	Consider the found network call to have succeeded if it returned any response code between 200-299.
Check for URL response	Accept Any Redirect Response Code	Consider the found network call to have succeeded if it returned any response code between 300-399.
Check for URL response	Accept Any Client Error	Consider the found network call to have succeeded if it returned any response code between 400-499.
Check for URL response	Accept Any Server Error	Consider the found network call to have succeeded if it returned any response code between 500-599.

Check for console log	Log Level	The log level to filter by, or select Any to just search for any console message.
Check for console log	Console Message	The full or part message to search for in the console log output of the current page.
Check for console log	Message Comparison	Define how to compare the Console Message value given against the list of console messages on the current web page.

Alert Suppression Configuration Definitions

Name	Description
Description	Space to indicate what the given suppression is doing or why its suppressed.
Suppression Type	Select to suppress a network call from producing a warning or failure should it be taking too long or produce a error response, or to suppress any console warnings or errors being written out by the web application.
Attribute	Click Show to set the details of the suppression. Details can be found in Alert Suppression Attributes below.

Alert Suppression Attributes

Suppression Type	Name	Description
Network	URL	The full or part URL to suppress errors from. This is matched against the list of error network calls found using the URL Condition option given.
Network	URL Condition	The way to compare the URL given against the list of logged failed network calls captured.
Network	Expected Response Code	Provide a specific response code to suppress. Only response codes from 400 and above are reported as errors.
Network	Accept Any Client Error	Suppress any response error codes between 400-499.
Network	Accept Any Server Error	Suppress any response error codes between 500-599.

Console	Log Level	Filter the console messages to suppress by their log level, or select Any for both warning and error messages.
Console	Console Message	The full or part console message to suppress. This is compared against the list of console warnings and errors using the Match Condition given.
Console	Match Condition	The way to compare the Console Message given against the list of captured console warnings and errors.

Step Action Configuration Definitions

Name	Description
Interaction Description	Space to provide a description of what the action is doing. If the action failed, this will be what is described in the alert or notification.
Action	The type of action to perform. Descriptions of these can be found under Step Action Definitions.
Always Required	If this is toggled on, the action must always be able to run during the check. If toggled off then if it failed, it's failure will be ignored, allowing for optional actions such as closing intermittent popups.
Settings	Click Show to provide further details for the action to run, such as the element to click on or the text to enter. Definitions of these options can be found under Action Settings Defintions.

Step Action Definitions

Name	Description
Click	Left click on an element on the page. This will always target clicking on the middle of the found element.
Double Click	Double click on an element on the page. This will always target clicking on the middle of the found element.
Right Click	Right click on an element on the page. This will only work for DOM events handling right clicks, and will not load the browser context menu.
Text Input	Send text input to a selected element on the page.
Password Input	The same as Text Input, however the given value to input is encrypted at rest and will not be mentioned in alerts or notifications.
Select Option from List/Choice	Select a value on the current page that is presented in a `select` element. This currently only supports the selecting of a single value on inputs that allow multiple to be selected.
Change Window (by opening order)	Switch the focus of further checks and actions to be against another window that has opened during the course of the web journey, targeting it by the order number in which is opened, with 0 being the initial window the check started on.
Change Window (by title)	Switch the focus of further checks and actions to be against another window that has opened during the course of the web journey, targeting it by the title of the window. If multiple windows have the same title, the first found will be used.
Navigate to URL	Manually navigate to a different URL, the same as changing the address in the address bar.
Wait	Make the web journey wait for a given time. This can be useful if a prior action needs to wait for something to complete on the page.
Refresh Page	Trigger a full page reload, the same as clicking the refresh button on a browser.
Close Window	Close the currently focused window. The check will then default back to the window originally launched for the check. If the original window is closed and further actions are attempted to be taken, then the check will fail.
Change iFrame (by order number)	Switch focus to an iframe on the current window by the order number its found on the page. Use 0 to indicate switching back to the main page. This needs to be used if you want to perform actions against something within an iframe.
Change iFrame (by xpath)	Switch focus to an iframe on the current window, using xpath to locate it on the current page. This needs to be used if you want to perform actions against something within an iframe.
Scroll to Element	Scroll down to an element on the page.
Take Screenshot	Save a screenshot of what is currently showing. This is limited to the current windows viewport, so will not include parts of the webpage that are off the screen. These are automatically captured at the end of every Web Journey Step, but additional screenshots can be added here. The screenshot will show as an additional screenshot in the Check Results.
Save DOM	Save the Document Object Model of the page currently shown. These are automatically saved at the end of every Web Journey Step, but additional saves can be added here. These will show as additional Saved DOMs on the Check Results.

Action Settings Definitions

Action	Name	Description
Click Double Click Right Click	XPath	The xpath of the element to click on. If the xpath returns multiple elements then the first one will be used.
Click Double Click Right Click	Search Text	As an alternative to searching by xpath, just searching for specific text on the current page to click on. The first occurrence of this text will be used. Specific elements can also be targeted in conjunction to this using the Element Type field.
Click Double Click Right Click	Element Type	This can be used in conjunction to the Search Text option to limit the area the text search applies to only the specific element tags given here.

Text Input	Input Xpath	Identify the element on the page to input the given text into using the xpath given here. If the xpath finds multiple elements, the first one found will be used.
Text Input	Element Id	Identify the element on the page to input the given text into using the elements id. If multiple elements have the same id then the first on the page will be used.
Text Input	Element Name	Identify the element on th page to input the given text into using the elements name. If multiple elements have the same name then the first on the page will be used.
Text Input	Input Text	The text to input into the element found.

Password Input	Input Xpath	Identify the element on the page to input the given password into using the xpath given here. If the xpath finds multiple elements, the first one found will be used.
Password Input	Element Id	Identify the element on the page to input the given password into using the elements id. If multiple elements have the same id then the first on the page will be used.
Password Input	Element Name	Identify the element on th page to input the given password into using the elements name. If multiple elements have the same name then the first on the page will be used.
Password Input	Input Password	The password to input to the element found. This will be encrypted at rest and not included in any alerts or notifications if the action fails. Additionally this will not be given if the check is exported, or through any API responses.

Select Option from List/Choice	Select Input Xpath	Identify the element on the page to select the option from using the xpath given here. If the xpath finds multiple elements then the first one found will be used.
Select Option from List/Choice	Select Input Id	Identify the element on the page to select the option from using its name attribute. If multiple elements have the same id attribute then the first one on the page will be used.
Select Option from List/Choice	Select Option Index	Select the value in the list by its position in the list, working from 0 as the first option in the list in ascending order.
Select Option from List/Choice	Select Option Name	Select the value in the list by its name shown on screen.
Select Option from List/Choice	Select Option Value	Select the value in the list by its value attribute.

Change Window (by opening order)	Window Id	Select the window to change focus to using the order number in which it opened, 0 being the initially launched window as part of the check.

Change Window (by title)	Window Title	The title of the window to switch focus to. This should be an exact match. If multiple windows have a matching title then the first one opened is used.

Navigate to URL	URL	The URL to navigate to.

Wait	Wait Time	The number of milliseconds to wait before continuing onto the next action or Web Journey Step if it's the last action to run.

Change iFrame (by order number)	Iframe Order Number	The iframe to switch focus to by the order number it is rendered on the page. 0 indicates the 'main' window, so outside of all iframes.

Change iFrame (by xpath)	Iframe Xpath	The xpath to identify the iframe to switch focus to. If the xpath returns multiple iframes then the first one found will be used.

Scroll to Element	XPath	The xpath of the element to scroll to. If multiple elements are returned by the xpath then the first one will be used.
Scroll to Element	Search Text	Search for text on the page to scroll too. The first match will be used, but results can be filtered further by targeting a certain type of element using the Element Type option.
Scroll to Element	Element Type	The element/tag type to filter the Search Text by.
