TLS Certificate Checks

TLS Certificate checks provide a process to check the certificate presented by a HTTPS connection to a URL and check its validity and the number of days remaining on it, and any certificates found as part of the certificate chain. These checks can provide easy ways to ensure alerts are triggered before certificates expire, especially with the practice of shorted validity periods being used becoming increasingly common.

TLS Certificate checks allow for both checking the full certificate chain or only the certificate returned by the given URL (so not a full validity check), and can be configured to only check the validity periods of the certificates themselves and nothing else.

For any self-signed certificates or non-standard Certificate Authorities, the root certificate will need to be added to the installation trust store for TLS Certificate checks to not always fail. See the TLS Configuration for more details.

Adding a TLS Certificate Check

As with all checks, TLS Certificate checks can be managed through the API or using Terraform. See the relevant documentation for each for adding DNS checks through these. This guide will show how to add a TLS Certificate check through the web console.

Login to Web Console and select Checks from the main menu.
Click Add located towards the top left of the web console.

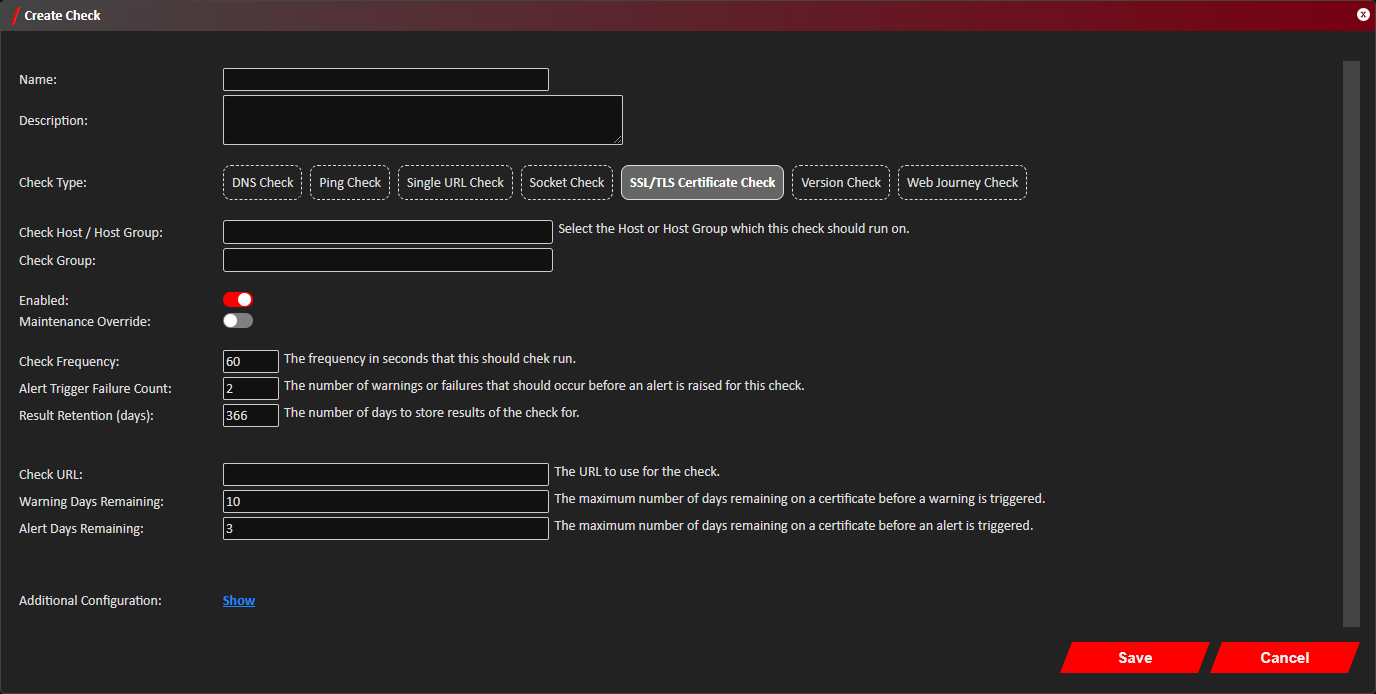

The Create Check window should now show. Definitions for each field can be found below under Configuration Definitions.

Ensure the Check Type is set to SSL/TLS Certificate Check.

Options to only check the certificate dates and disabling checking the full certificate chain can be found by clicking Show next to Additional Configuration.
Click Close on the Additional Configuration windows if still open, and click Save.
You should now see confirmation that the Check was successfully created in the bottom right notification area in the web console. If the check was created in the Dashboard then it will shortly appear under the Check Group it was assigned too.

Newly created checks will initially show with as a successful check in colour on the dashboard until it's first run, but will have its status show as either empty or a '-'.

Amending a URL Check

As with all checks, TLS Certificate checks can be managed through the API or using Terraform. See the relevant documentation for each for adding URL checks through these. This guide will show how to amend a TLS Certificate check through the web console.

Login to Web Console and select Checks from the main menu.
Click Actions next to the Check you want to edit, and then click Edit.

The list of checks shown can be filtered using the search bar to by the checks name, description, hostname or linked Check Group or App Group names.

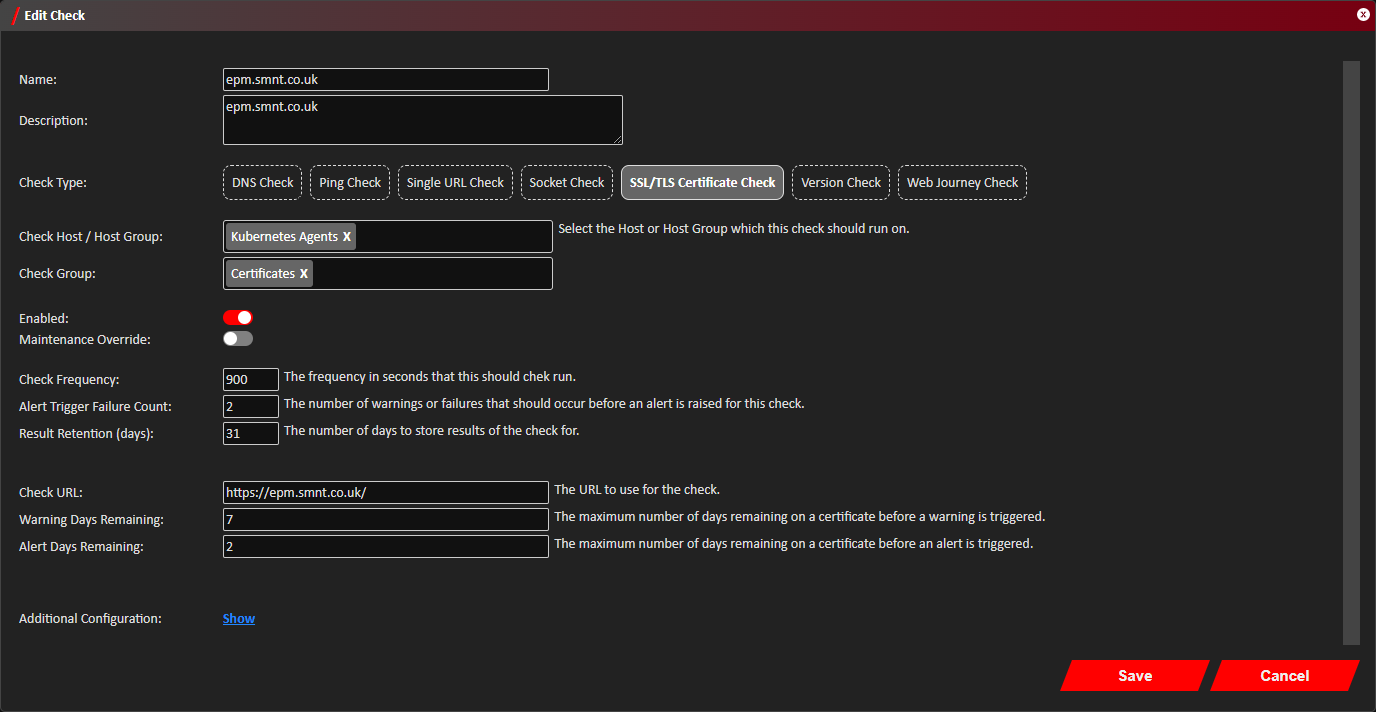

The Edit Check window should now show. Definitions for each field can be found below under Configuration Definitions.

Ensure the Check Type is set to SSL/TLS Certificate Check.

Options to only check the certificate dates and disabling checking the full certificate chain can be found by clicking Show next to Additional Configuration.
Click Close on the Additional Configuration windows if still open, and click Save.
Click Save.
Confirmation the check was successfully updated should be shown in the bottom right notification area of the web console. Any checks in flight will continue to use the previous configuration.

Removing TLS Certificate Checks

Login to Web Console and select Checks from the main menu.
Click Actions next to the Check you want to edit, and then click Remove.

The list of checks shown can be filtered using the search bar to by the checks name, description, hostname or linked Check Group or App Group names.
Click Remove on the Remove Check conformation prompt.
Confirmation the check was successfully deleted should show in the bottom right notification area of the web console. Checks in flight may still try and complete so could still produce an alert shortly after deletion. All result history of the check will also be removed.

Configuration Definitions

Name	Description
Name	Provide a name to define what this check is monitoring.
Description	Space to provide a longer description of what the check is monitoring.
Check Type	The type of check this is. This should be set to SSL/TLS Certificate Check.
Check Host / Host Group	The Check Host or Host Group to run this check on.
Hostname	The hostname to lookup as part of this check.
Check Group	The Check Group to assign this check to, which will determine which dashboard it will be shown in.
Enabled	A toggle to enable or disable this check from running.
Maintenance Override	A toggle to manually put the check into maintenance mode. This allows the check to continue running and storing results, but failures will not produce any alerts or notifications, and do not get counted in some reports.
Check Frequency	The minimum frequency in seconds that this check should be run.
Alert Trigger Failure Count	The number of successive failed checks that should occur before an alert or notification is fired.
Result Retention (days)	The number of days that the history of results for this check should be retained for.
Check URL	The URL to check the certificate on starting with https://, for example https://www.mycompany.com/.
Warning Days Remaining	The maximum number of days remaining on a certificate before a warning is triggered.
Alert Days Remaining	The maximum number of days remaining on a certificate before an alert is triggered.
Additional Configuration	Additional configuration for this check can be found by clicking Show. This configuration is defined below under Additional Configuration.

Additional Configuration

Name	Description
Check Certificate Dates Only	If toggled on only the certificate validity period will be checked, and nothing else about if it is valid or can be trusted.
Check Full Certificate Chain	If toggled off only the initial certificate will be checked, ignoring any others in the certificate chain (other than establishing the chain can be followed to a trusted Certificate Authority).
